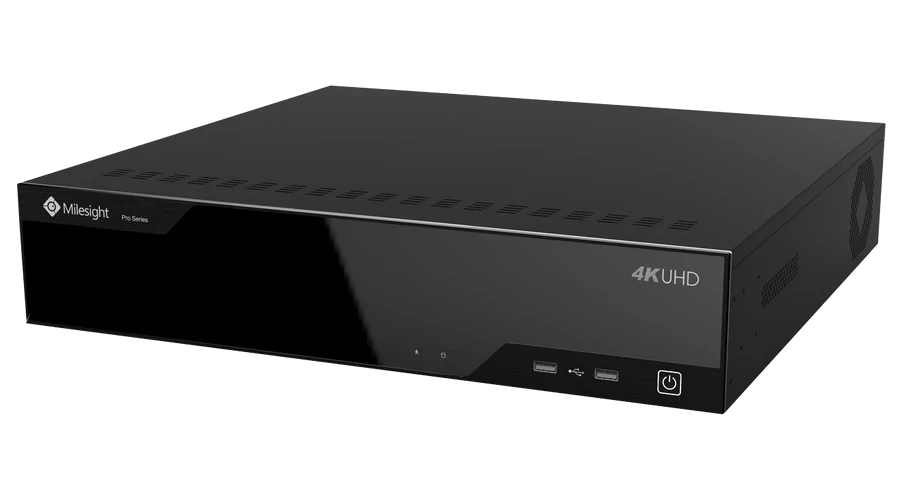

| Input | MS-N8032-G | |
| Network Video Input | 32-CH | |
| Bandwidth Requirement | 320Mbps or 200Mbps(When RAID is enabled) (Incoming)256Mbps or 200Mbps(When RAID is enabled) (Outgoing) | |
| Output | ||
| HDMI Output | 2-CH, Resolution: 3840x2160/60Hz(HDMI1 Only), 3840x2160/30Hz(HDMI1 Only), 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output | |
| VGA Output | 2-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Dual Stream | Support | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF | |
| Synchronous Playback | *The recommended parameters are theoretical values only. Actual performance may vary depending on the usage environment, the number of connected cameras, and their models. | 6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps@3MP), 24*(30fps@1080P), 32*(30fps@720P),32*(30fps@D1) |
| Format | ||
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 | |
| Audio Format | G.711/AAC/G.722/G.726 | |
| Storage | ||
| SATA | 8*SATA HDD (3.5”) | |
| eSATA | 1*eSATA | |
| Capacity | Up to 10TB capacity for each HDD | |
| Disk Array | ||
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 | |
| Record | ||
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) | |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) | |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback | |
| Backup | Video backup, Image Backup | |
| Network | ||
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS | |
| Interface | ||
| Network Interface | 2*RJ45 10/100/1000Mbps | |
| USB Interface | 1*USB 3.0; 2*USB 2.0 | |
| Serial Interface | 1*RS-485 Series Port for PTZ, 1*RS-232 Series Port for Console, 1*RS-485 Series Port for Keyboard | |
| Audio Input/Output | 1*RCA/2*RCA | |
| Alarm Input | 16-CH | |
| Alarm Output | 4-CH | |
| General | ||
| Compatibility | ONVIF, API | |
| Advanced Function | ANR, N+1 Hot Spare | |
| ANPR | Support | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed | |
| Keyboard Control | Milesight Keyboard(MS-K01) | |
| Power Supply | AC 100V∼240V 50Hz∼60Hz | |
| Consumption | ≤35W(Without HDD) | |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% | |
| Dimensions | 440mm(W)X420mm(D)X88.2mm(H), Rack Mountable Chassis(2.0U Standard) | |
| Weight | 6.0Kg | |
| Warranty | 3/5 Years |
